Connectors

Mini Project Electrical Tape

Use electrical tape to fasten the other end of your wires to the + and - sides of the battery.
Electrical Tape
When you're done:
  • Log entry 1.5.1: What are some advantages and disadvantages of using electrical tape compared to a crimped connector like the alligator head?

Other Types of Connectors

Here are some other common connectors that you might encounter:


Spade and Fork Terminals

Spade terminals are used to connect or terminate a single wire, allowing it to connect to a stud or screw to form both a mechanical and electrical connection.

Spade and Fork Terminal
Spade and Fork Terminals

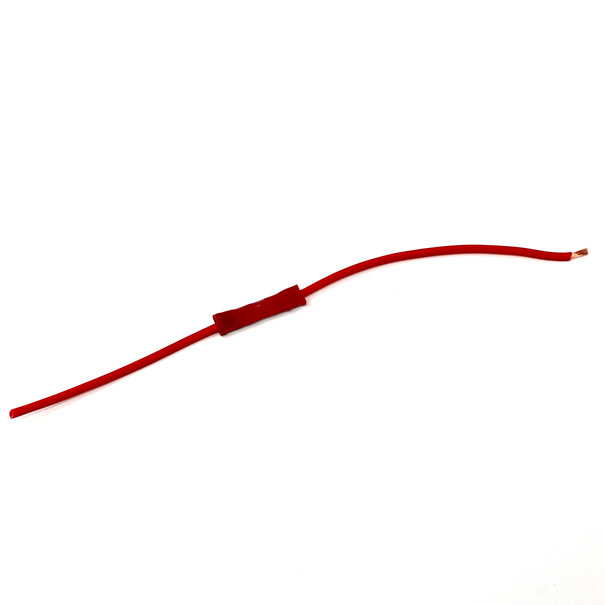

Splices

A Butt Splice connector is a type of crimp that is used to connect one wire to another. A wire is inserted into one half of the connector and crimped. The other wire is then inserted into the other half of the connector and is also crimped.

Butt Splices
Butt Splices

Disconnects

Disconnnect connectors come in two Paired varieties. One has a blade and is called the Male terminal. The other crimp is the socket side and Female terminal. This pair of connectors allow easy ability to connect or disconnect wires or components with wires.

Disconnects
Disconnects

Wire Nuts

Wire nuts are a type of twist on connectors used to connect two or more wires.They are widely used in North America in residential, commercial and industrial building power wiring. These connectors have an exterior that is made from insulating plastic, their means of connection is a tapered coiled metal insert, which threads onto the wires and holds them securely.

Wire Nuts
Wire Nuts

Header Pins

Header Pin Connectors are used to add a connector to one wire or a set of wires. Each wire is crimped with either a male or female pin and then set into a plastic housing to give the cable more strength.

Header Pin Connectors
Header Pin Connectors
